Project Profile: DUCT DOCTOR USA

Fast Solutions for a Growing Company

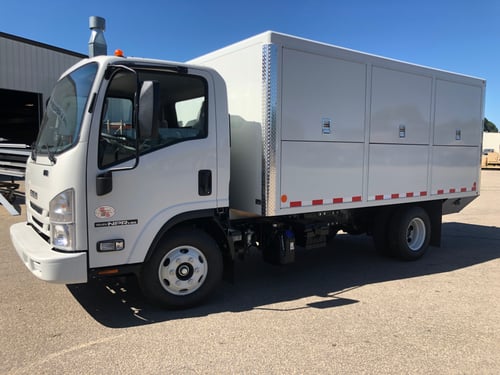

Marion_DuctDoctor_4Duct Doctor USA provides quality source removal air duct cleaning and indoor air quality improvement services for residential and commercial customers in 150 cities across 11 states. The company, which was founded in 1985, continues to expand as franchisees open new operations. This has created a need for custom trucks that fit Duct Doctor’s operational requirements.

As the Duct Doctor team searched for a body builder that could fulfill its custom order with a short lead time, it was referred to us by a Marion customer. After initial planning meetings, Marion began designing and manufacturing a custom truck body that was completed in August with Duct Doctor’s exact specifications.

Engine-Powered Vacuums

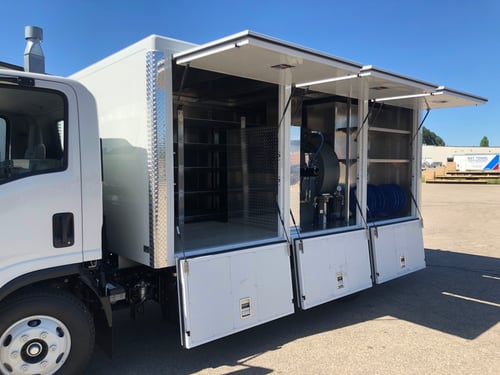

Marion_DuctDoctor_5

Duct Doctor utilizes a patented vacuum truck with a cleaning system that’s powered by the truck’s diesel engine instead of a standalone power source. This is a unique feature for trucks in this industry. When servicing a home, Duct Doctor technicians use an 8-inch hose to connect the power vacuum to the home’s air handler. A high-velocity air sweeper is then inserted into the ductwork and controlled with a hose connected to the truck’s air compressor, which supplies up to 200 pounds of air pressure to extract debris and contaminants from the ductwork.

The diesel-powered vacuum required Marion to design a new drive system with belt-driven components, which is a first for Marion. The truck’s PTO and driveshaft are mounted to bearings that hang off of the frame rails, and then the belts run up to the floor of the body to drive the blower and air compressor. Tensioning the belts and calculating RPMs and torque for the pulley and belt system were challenges that Marion met head-on when designing this truck body.

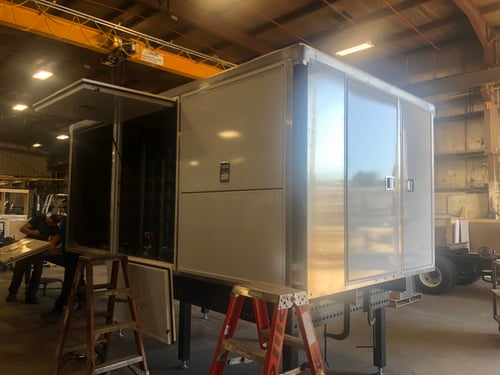

Marion_DuctDoctor_1

Going Outside the Comfort Zone

The tight turnaround of this order meant using techniques outside of Marion’s typical comfort zone. To speed up the process and help with throughput, lasered and formed pieces were used instead of Marion’s usual extrusions. This was intended to make the truck as self-fixturing as possible and reduce the amount of measuring that had to be done in the shop. Marion has used this technique on previous orders but never to this extent. The finished product shows how adaptability plays a key role in producing quality products on time.

The Trucks

Included in this order:

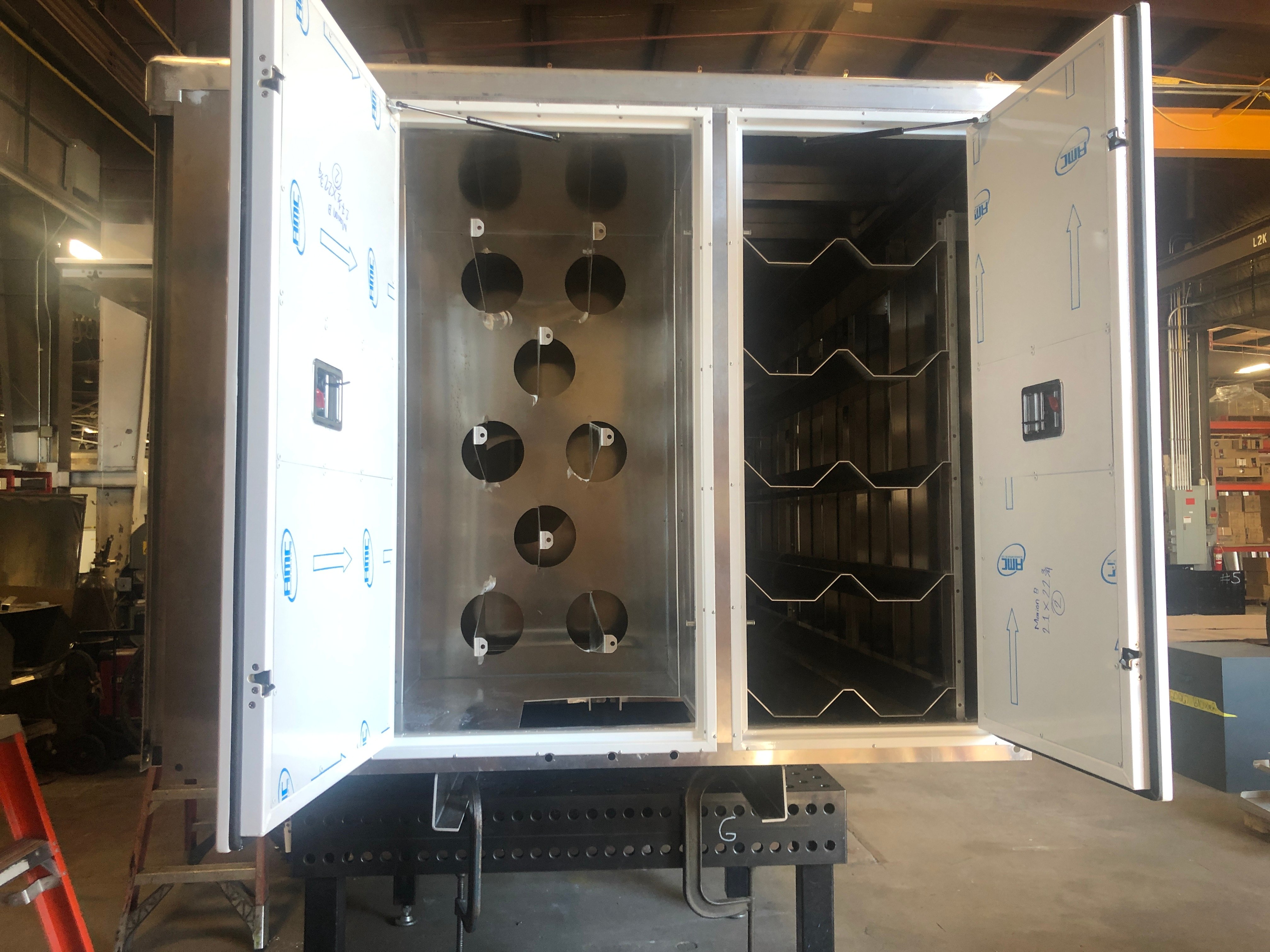

Because Duct Doctor removes contaminants from ductwork using a vacuum system, the truck also required a filtration compartment that uses eight large filters to remove and catch all ductwork contaminants before clean air is released from the top of the truck.

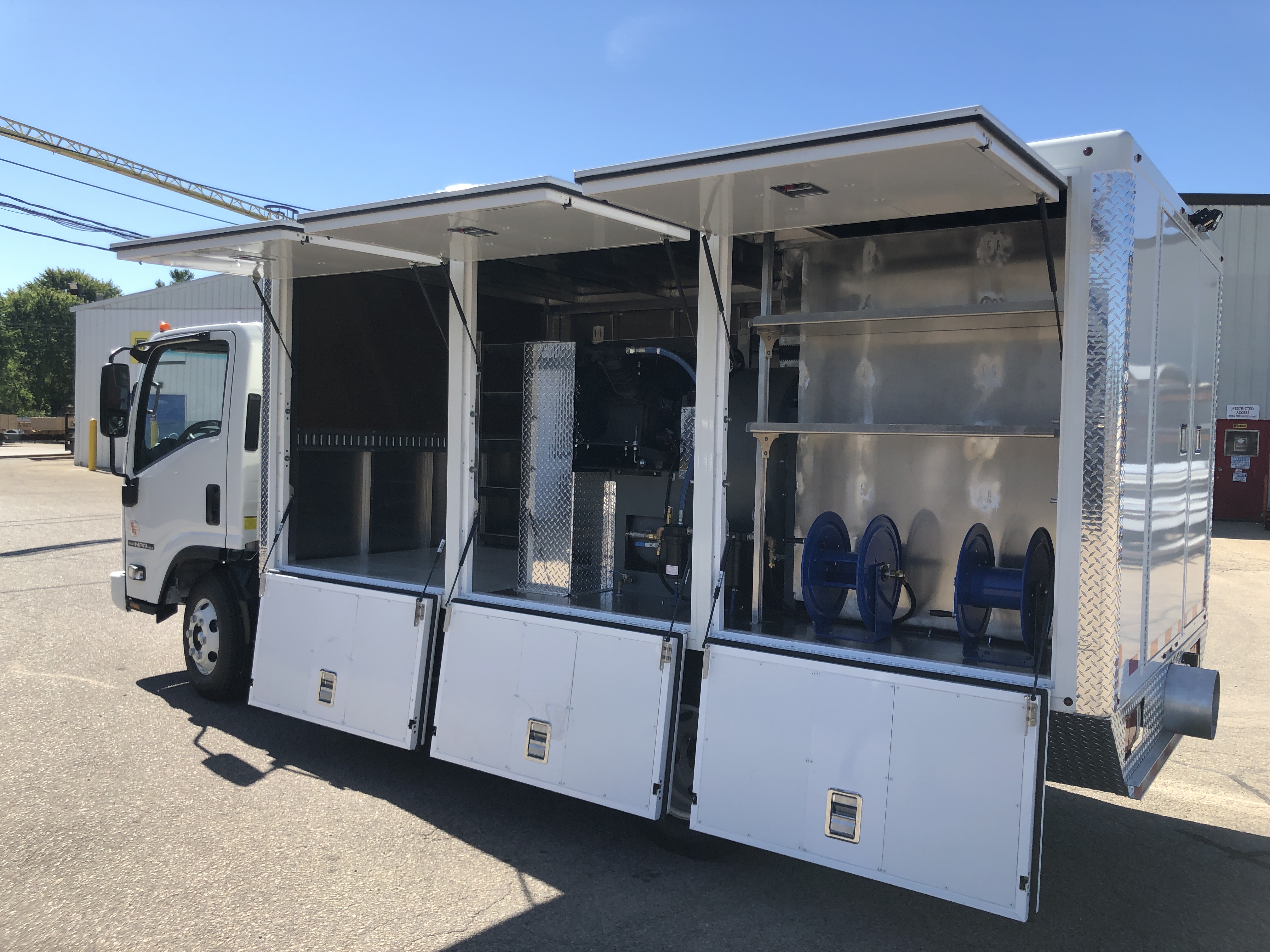

Additionally, the following features were added to maximize vehicle efficiency for the operators:

  • Special racking
  • Adjustable shelves
  • Custom designed tool compartments
Marion_DuctDoctor_3

Marion_DuctDoctor_6

Future considerations for Duct Doctor trucks include ladder compartments and improved hinges on the side doors for increased control when opening and closing.

Future Design Features

Duct Doctor has two more truck bodies on order with Marion, and the teams are in discussion regarding design improvements for future trucks.  The relationship with Duct Doctor is a perfect example of how Marion can help customers with their immediate needs while guiding them to further improvements down the road.
